USB ADAPTER CARD for Apple Macintosh computers ( and PC's )
NEW IN BOX! Brand NEW Simply plug into your existing PCI slot
.
Compatible with Mac OS 8.5.1 or later. Requires Macintosh with available
PCI slot.
Installs quickly and easily into internal PCI slot. Provides TWO USB
Type A ports!
Fully compatible with Mac USB OHCI specification. Fully compliant with
USB specs!
Supports MULTIPLE PCI-to-USB cards for additional USB ports.
USB peripherals are faster, less expensive, and many of them are for
both the PC and Mac.
No need to set ID's,no terminators, just Plug-unplug hot
and NO rebooting is necesary .
When you connect a USB hub(s) you can have up to 126 peripherals.

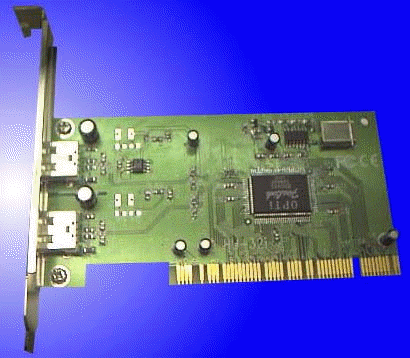

2-Port PCI to USB
Host Adapter
For PC & Power Mac systems
Key Features:
USB(Universal Serial Bus) 1.1 specification compatibility.
Compatible with OHCI (Open Host Controller Interface) Revision
V.1.0a .
Hot-Swappable and real Plug & Play capability.
Provides two downstream ports with Root Hub function.
Works at normal and low power mode.
Enables power management of each port by individual power IC
switch.
Supports over-current and high-inrush current protections.
Provides Bus fault detection and reconfiguration.
PCI interface specification V.2.1 compliant.
Specifications:
| Chipset |
Opti |
| Basic Power Consumption: |
85mA. |
| Bus-Power limit current protect: |
1250mA. |
| Downstream port: |
2 USB series-A receptacles |
| Output Voltage Per-port: |
DC+5V |
| Output Current Per-port: |
500mA |
| Operating temperature: |
5 C ~ 40 C |
| Stock temperature: |
-20 C ~ 60 C |
| Humidity: |
0%~80% RH, non-condensing |
| Operating temperature: |
50g. |
| Dimensions(H* L): |
65*120 mm |
| Emission: |
FCC Class B,CE |
System Requirement:
• Windows 98 or Windows 95 OSR2.1 with USB supplement.
• PCI Power Mac with Mac OS.8.5.1 or later
Ordering Information :
2-Port PCI USB Host Adapter : Part number USB-PCI2
Drivers are available on your system CD or can be downloaded from the APPLE site and the links are below:
Driver for 8.5.1
Driver for 8.6 or later
